Some of our investigative work
Locomotive low water shutdowns
A 16 cylinder locomotive had multiple periodic low water failures. Testing could not find any leaks. Analysis and system testing found that it would fail only after 35 minutes at full load. This gave the appearance of a random failure as it was only in certain places this would occur.

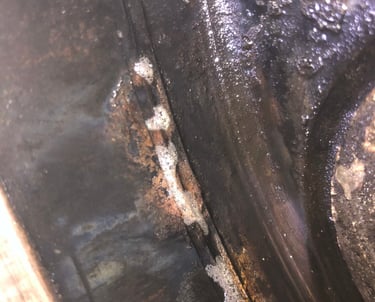

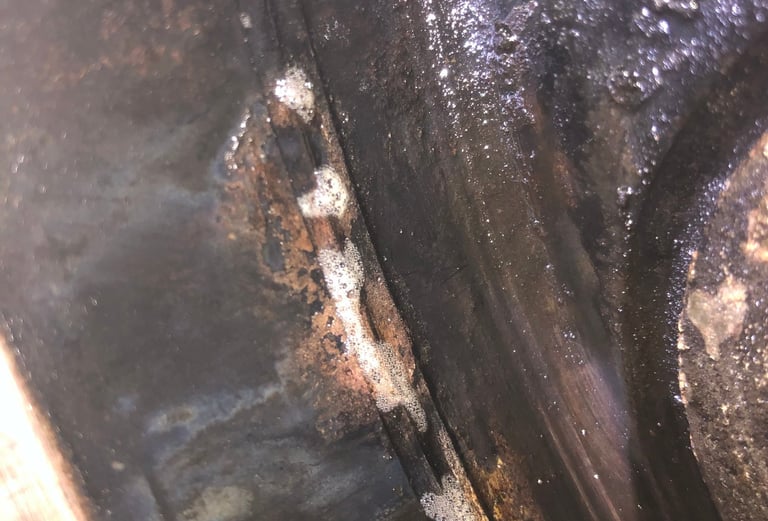

Testing at pressure points confirmed a process of failure - sight glass bubbles, then bounce, then pressure rises at the water outlet, and eventually header tank overflow. Static cylinder pressure testing could not locate the fault. A series of elimination tests led to one cylinder that was removed. Pressure testing of the cylinder after an hour at 550 kPa finally revealed a minute crack in the head that, when hot enough and under full load pressure only, would force cylinder pressure into the water system. Picture is of the soap bubbles locating the crack.
Problem found and a new diagnostic process implemented that identified several other locomotives with the same random issues.

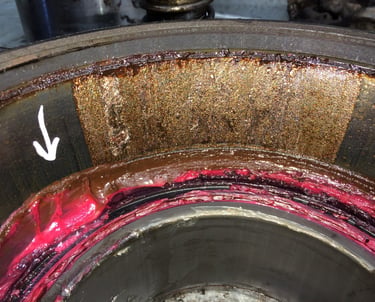

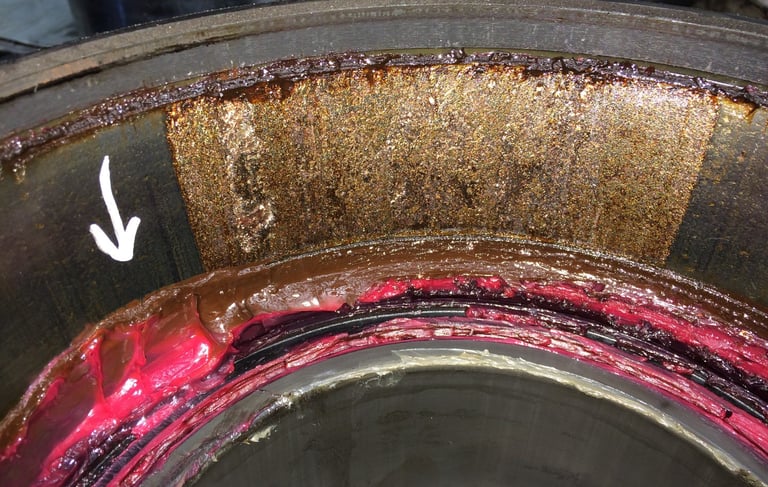

Fleet bearing failures
A new fleet of wagons began suffering bearing failures across multiple batches.
There was no single batch or manufacturing cause identified and the suspect was though to be faulty seals. Analysis of bearing when stripped and crackle testing of grease identified moisture through the grease in affected bearings.
This was eventually traced back to likely contamination during transport of the pre-greased sealed bearing from the manufacturer to the assembly.
Warranty claim proven.

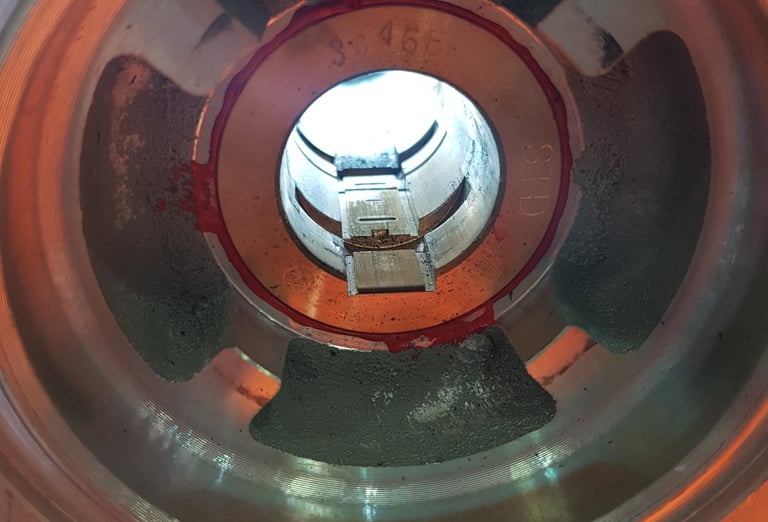

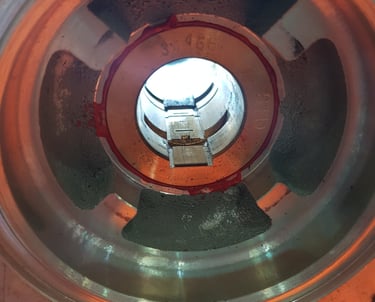

Train emergency brake applications
An ECP train was having random emergency brake applications after an initial brake application. Extensive testing could not fault the train. Log analysis revealed on one log a one second gap between the pneumatic and ECP systems commanding the emergency application - proving it was a pneumatic problem.
Further ECP log analysis showed it was coming from a wagon in the second half of the train. This could be an emergency portion, vent valve or The OEM had an Echelon tested but it was overseas being used. A series of component cut outs to eliminate the possible wagon causes on each wagon was instigated until the issue was traced to one of the last wagons.
The problem was found with contamination in one of the emergency portion slide valves that allowed a small leak of air into the emergency release spool valve.
Mystery solved.

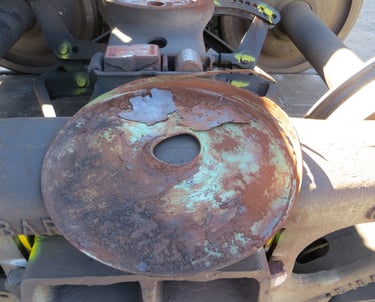

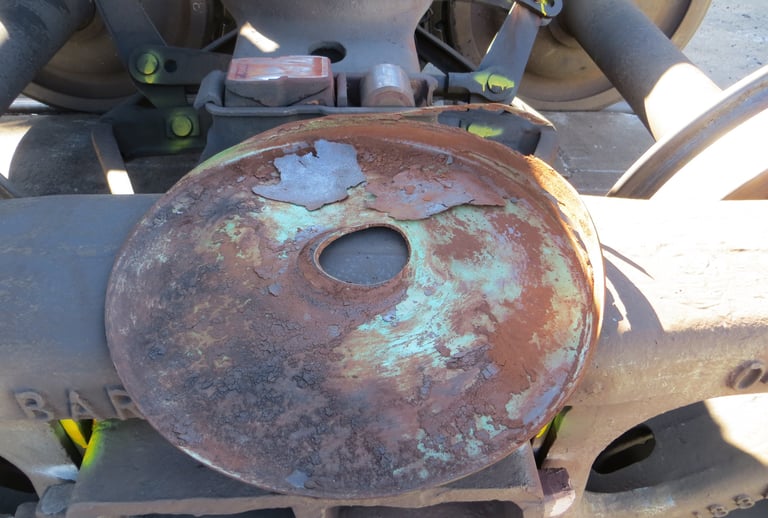

Center liner damage
Center liners were noted to be distorted and flattened on some wagons.
The liners are Neoprene and very good wearing, however Neoprene is also susceptible to breakdown from sulphur.
Due to cracks in the top deck, water had infiltrated into the center sill and with some cracks around the center casting had infiltrated into the center liner. The water, washed over coal residue, had high levels of sulphur that affected the liners.
The issue of cracks was identified and rusting of the center sills was identified early.
A mysterious fault traced back to multiple other developing faults.
